All sizes are in millimetres (mm).
Panel 1 is the outside front panel (front cover).
Roll folds are divided into slightly different-sized panels, e.g. for A4 roll folded, the panels will be 97mm, 100mm, and 100mm to form the finished DL or 1/3rd A4 product. Add 1.5mm bleed to the finished flat page size as usual.
Finishing Code: FROLL3

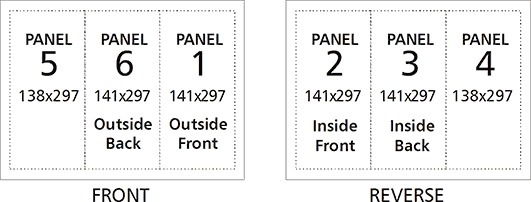

A3 roll folded to 141 × 297 mm

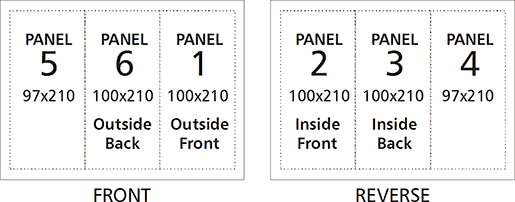

A4 roll folded to 100 × 210 mm

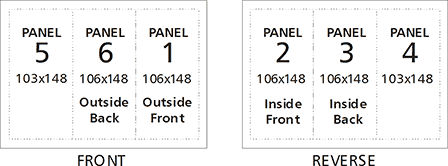

3 panel A6 - 315 × 148 mm roll folded to 106 × 148 mm

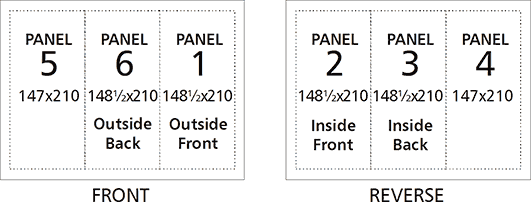

3 panel A5 - 444 × 210 mm roll folded to 148.5 × 210 mm

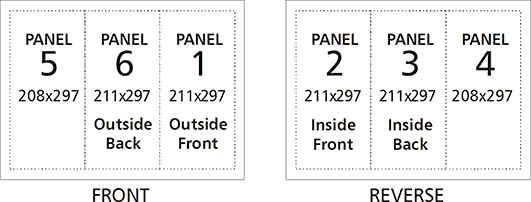

3 panel A4 - 630 × 297 mm roll folded to 211 × 297 mm
Finishing Code: FROLL4

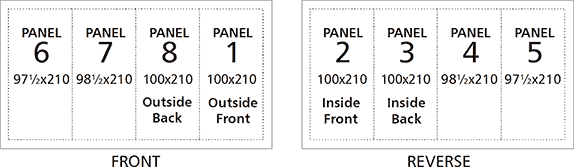

4 panel DL - 396 × 210 mm roll folded to 100 × 210 mm

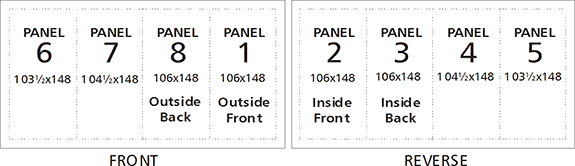

4 panel A6 - 420 × 148 mm roll folded to 106 × 148 mm

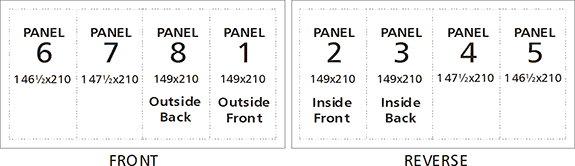

4 panel A5 - 592 × 210 mm roll folded to 149 × 210 mm

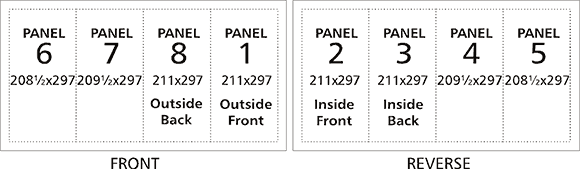

4 panel A4 - 840 × 297 mm roll folded to 211 × 297 mm
